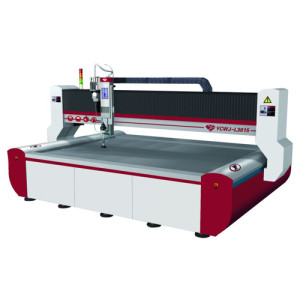

Fly-Arm Cutting Table Waterjet machine

201577162017779

Fly-Arm Cutting Table Waterjet machine

Category:
  • Description
  • Reviews (0)

Product Description

One full set of waterjet machine consists of three basic parts: HP system, cutting table and CNC controller, other accessories for option, like abrasive delivery cooler system, etc.

– Fly-Arm Cutting table

We adopt HIWIN OR I+F ball screw and guideway on the X and Y axis.

And adopt MISUBISHI on servo motor.

– HP sytem

We have 380Mpa and 420Mpa high pressure system for option.

380Mpa with semi imported configuration, 420Mpa is fully imported configuration. You can choose them as per your special demand.

– Control system

We can offer our own cutting system or imported cutting system as per your demand.

– Specification

Parameters WJ-X1520 WJ-X1530 WJ-X2030 WJ-X2060 WJ-X2080
Efficient cutting area(mm) 1500×2000 1500×3000 2000×3000 2000×6000 2000×8000
Axis travel

(mm)

X 1500 1500 2000 2000 2000
Y 2000 3000 3000 6000 8000
Z 150-180 150-180 150-180 150-180 150-180
Cutting accuracy(mm) +/-0.1
Positioning accuracy(mm) +/-0.02
X,Y dry-run speed (m/min) 0-12(if need 20m/min speed, we can customized)
Cutting Speed (m/min) According to the material and thickness

Remark: Other special size also can customized.
