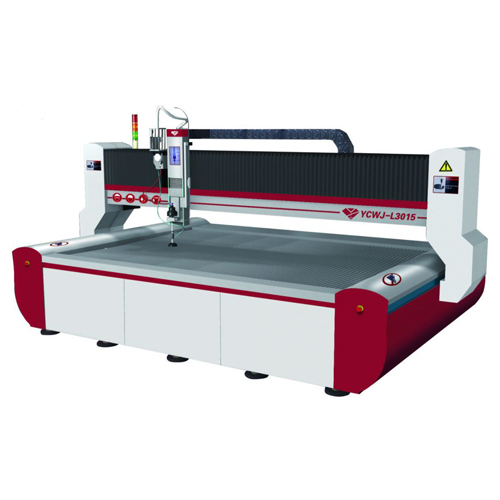

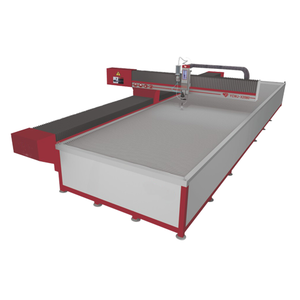

One full set of waterjet machine consists of three basic parts: HP system, cutting table and CNC controller, other accessories for option, like abrasive delivery cooler system, etc.
– Bridge Cutting table
We adopt HIWIN OR I+F ball screw and guideway on the X and Y axis.
And adopt MISUBISHI on servo motor.
– HP sytem
We have 380Mpa and 420Mpa high pressure system for option.
380Mpa with semi imported configuration, 420Mpa is fully imported configuration. You can choose them as per your special demand.
– Control system
We can offer our own cutting system or imported cutting system as per your demand.
– Specification
| Parameters | WJ-L1515 | WJ-L2010 | WJ-L2015 | WJ-L2515 | WJ-L3015 | |
| Efficient cutting area(mm) | 1500×1500 | 2000×1000 | 2000×1500 | 2500×1500 | 3000×1500 | |
| Axis travel (mm) | X | 1500 | 2000 | 2000 | 2500 | 3000 |
| Y | 1500 | 1000 | 1500 | 1500 | 1500 | |
| Z | 150-180 | 150-180 | 150-180 | 150-180 | 150-180 | |
| Cutting accuracy(mm) | +/-0.1 | |||||
| Positioning accuracy(mm) | +/-0.02 | |||||
| X,Y dry-run speed (m/min) | 0-12(if need 20m/min speed, we can customized) | |||||
| Cutting Speed (m/min) | According to the material and thickness | |||||
One full set of waterjet machine consists of three basic parts: HP system, cutting table and CNC controller, other accessories for option, like abrasive delivery cooler system, etc.
– Bridge Cutting table
We adopt HIWIN OR I+F ball screw and guideway on the X and Y axis.
And adopt MISUBISHI on servo motor.
– HP sytem
We have 380Mpa and 420Mpa high pressure system for option.
380Mpa with semi imported configuration, 420Mpa is fully imported configuration. You can choose them as per your special demand.
– Control system
We can offer our own cutting system or imported cutting system as per your demand.
– Specification
| Parameters | WJ-L1515 | WJ-L2010 | WJ-L2015 | WJ-L2515 | WJ-L3015 | |
| Efficient cutting area(mm) | 1500×1500 | 2000×1000 | 2000×1500 | 2500×1500 | 3000×1500 | |
| Axis travel (mm) | X | 1500 | 2000 | 2000 | 2500 | 3000 |
| Y | 1500 | 1000 | 1500 | 1500 | 1500 | |
| Z | 150-180 | 150-180 | 150-180 | 150-180 | 150-180 | |
| Cutting accuracy(mm) | +/-0.1 | |||||
| Positioning accuracy(mm) | +/-0.02 | |||||
| X,Y dry-run speed (m/min) | 0-12(if need 20m/min speed, we can customized) | |||||
| Cutting Speed (m/min) | According to the material and thickness | |||||
